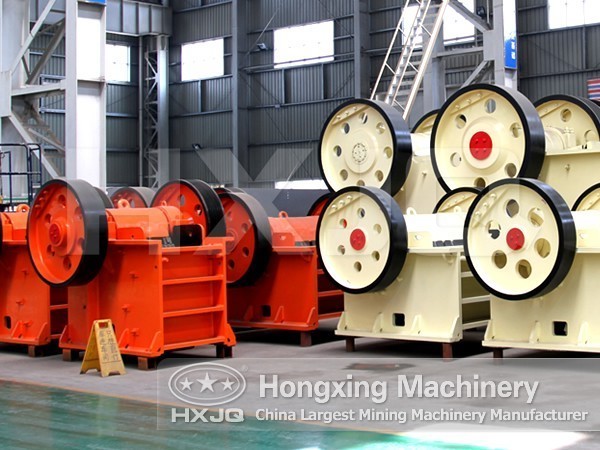

Primary jaw crusher

Primary jaw crusher

    Operation Rules of Jaw Crusher: The motor transmits power through belt and drives the moving jaw do periodic motion to the fixed jaw surrounding the eccentric shaft. The angle between toggle plate and moving jaw increases when moving jaw moves up. So the moving jaw closes to the fixed jaw. The stuff will be crushed in this process.
Technical Features

Description of Jaw Crusher

Primary jaw crusher

The jaw crusher is widely used in mining, metallurgical industry, building material, highway, railway and chemical industry. The PE series jaw crusher is widely applied in mine, metallurgy, chemical industry, building, highway, water conservancy, and light industry to crush or break various kinds of stones with compressive strength no more than 350Mpa.

Jaw Crusher

Based on years' experience and technology development, Hongxing jaw crusher series is of 9 different models, which can meet most crushing requirements in primary and secondary crushing. We recently have primary jaw crusher, mobile jaw crusher, jaw breaker, rock crusher, aggregate jaw crusher and so on.

Operation Rules of Jaw Crusher:

The motor transmits power through belt, drives the moving jaw do periodic motion to the fixed jaw surrounding the eccentric shaft. The angle between toggle plate and moving jaw increases when moving jaw moves up. So the moving jaw closes to the fixed jaw. The stuff will be crushed in this process. The angle of Jaw Crusher between toggle plate and moving jaw decreases when moving jaw moves down; the moving jaw of Jaw Crusher moves away from fixed jaw by the pulling of rod and spring, and the products after crushing will be discharged from the outlet of Jaw Crusher.

Jaw Crusher Main Features and Advantages:

1. Crushing cavity is deep without dead zone. It is easier to feed materials and yield higher output.
2. Jaw crusher is featured with high crushing ratio and sound epigranularity.
3. The gasket type adjusting device of the discharge gate is characterized by reliable performance, convenient use, large adjusting range, and improves the equipment flexibility.
4. The lubricating system is safe and reliable. It makes it easier to replace components and requires little maintenance.
5. Jaw crusher features simple structure, reliable performance and low operating cost.
6. It is highly energy saving. A single machine saves 15%~30% of energy consumed and the system can save over half the energy consumed.
7. To meet different client needs, the discharge gate is designed with a large adjusting range.
8. Jaw crusher causes low noise and creates little dust.
Technical Parameters
Model
Feed opening
(mm)
Max.feeding size
(mm)
Adjusting range of discharge opening
(mm)
Processing capacity
(t/h)
Rotation speed of eccentric shaft
(r/min)
Motor power
(kw)
Total weight
(t)
Dimensions
(L×W×H)
(mm)
PE-150×250 150×250 125 10-40 1-3 250 5.5 0.8 720×660×850
PE-200×300 200×300 180 15-50 2-6 260 7.5 1.2 910×750×990
PE-200×350 200×350 180 18-70 3-10 260 11 1.5 1000×870×990
PE-250×400 250×400 210 20-60 5-20 300 15 2.8 1300×1090×1270
PE-400×600 400×600 340 40-100 16-60 275 30 7 1730×1730×1630
PE-500×750 500×750 425 50-100 40-110 275 55 12 1980×2080×1870
PE-600×750 600×750 500 150-200 80-240 275 55 15.8 2070×2000×1920
PE-600×900 600×900 500 65-160 50-180 250 55 17 2190×2206×2300
PE-750×1060 750×1060 630 80-140 110-320 250 110 29 2660×2430×2800
PE-800×1060 800×1060 640 130-190 130-330 250 110 29.8 2710×2430×2800
PE-830×1060 830×1060 650 160-220 150-336 250 110 30.7 2740×2430×2800
PE-870×1060 870×1060 660 200-260 190-336 250 110 31.5 2810×2430×2800
PE-900×1060 900×1060 685 230-290 230-390 250 110 33 2870×2420×2940
PE-900×1200 900×1200 750 95-165 220-450 200 110 52 3380×2870×3330
PE-1000×1200 1000×1200 850 195-265 315-500 200 110 55 3480×2876×3330
PE-1200×1500 1200×1500 1020 150-350 400-800 180 160-220 100.9 4200×3300×3500
PE-1500×1800 1500×1800 1200 220-350 500-1000 180 280-355 122 5160×3660×4248
PE-1600×2100 1600×2100 1500 300-400 1300-2200 160 350-380 150.6 6210×4013×4716
PEX-150×750 150×750 120 18-48 8-25 320 15 3.8 1200×1530×1060
PEX-250×750 250×750 210 25-60 13-35 330 30 5.5 1380×1750×1540
PEX-250×1000 250×1000 210 25-60 16-52 330 30 7 1560×1950×1390
PEX-250×1200 250×1200 210 25-60 20-61 330 37 9.7 2140×1660×1500
PEX-300×1300 300×1300 250 20-90 16-105 300 55 15.6 2720×1950×1600
