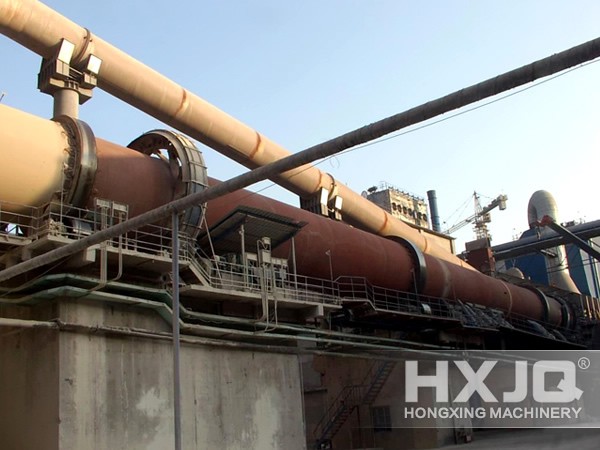

Cement Rotary Kiln
Specification: Φ2.5×40m-Φ6.0×95(m)
Processing capacity: 180-1000(t/d)
Applied material: dolomite, active lime, cement clinker, and bauxite.
Applied area: portland cement making industry.
you can click the button and contact us.

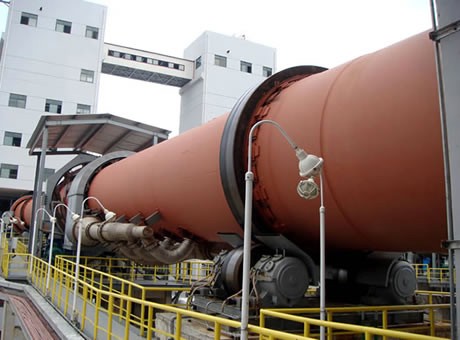

Introduction to Cement Rotary Kiln
Cement rotary kiln refers to rotating calcining kiln (also known as rotating kiln), which belongs to thermal equipment. Rotary kiln can be divided into metallurgy kiln, limestone rotary kiln, and cement rotary kiln according to its different dealing materials. Metallurgy rotary kiln is mainly used for the magnetizing calcining of lean iron ore in iron and steel plant in metallurgy industry, the chromites and josephinite oxidizing calcining, calcining of dewalquite and clinker aggregate and aluminum hydroxide roasting in aluminum factory.
The limestone rotary kiln (activity limestone kiln) is used for calcining activity lime and dolomite in iron and steel plant and ferroalloy works.
Components of Limestone Rotary Kiln
1. The most common driving components are gear reducers. Gear reducers are used when reduced speed or increased torque is required. We use a gear reducer on the kiln. Rotation in and out, rollback capability, reversibility, and actual speed reduction, overall torques are all specifications required for designing a gear box.
2. Hydraulic couplings are also used in some fan applications where speed control is required. Hydraulic couplings are not used as much due to their size and inefficient characteristics. The simplest drive components are belt drive systems. Belt drive systems are used mainly on fans and screw conveyors; however, direct coupling the motor to the unit will reduce maintenance.
3. Bearings are in every moving piece of equipment. Bearings are also uniquely designed for their application. The most common bearings are the anti-friction or roller bearings. These bearings have become standardized and perform excellent in almost any condition. Anti-friction bearings do not work well with heavy loads. Specialized bearings are used on the kiln where high loads are seen.
Technical Features of Cement Rotary Kiln
1. With advanced structure, the low pressure loss of the vertical preheated can speed up the preheating process; the decomposition rate in the kiln of the preheated limestone can be 20-25%, and can use directly the 10-15mm fine grade limestone.
2. Both ends of cement rotary kiln are sealed by combination scale, which ensures the index of air leakage less than 10%. In order to lessen the radiation loss, it adopts compound refractory materials.
3.Round or square vertical cooler with filling type and ventilated area, which make the lime temperature 800 degree Celsius + ambient temperature. It is easy to transport, store, and can be preheated by the secondary kiln air to above 700 degree Celsius, which reduce the moving parts and special materials
Parameters Type
Product Specification (m) |
Kiln dimensions | Motor power (kw) |
Total weight (t) |
note | ||||
Diameter (m) |
Length (m) |
Obliquity (%) |
Capacity (t/d) |
Rotation speed (r/min) |
||||
Φ2.5×40 | 2.5 | 40 | 3.5 | 180 | 0.44-2.44 | 55 | 149.61 | ----- |
Φ2.5×50 | 2.5 | 50 | 3 | 200 | 0.62-1.86 | 55 | 187.37 | ----- |
Φ2.5×54 | 2.5 | 54 | 3.5 | 280 | 0.48-1.45 | 55 | 196.29 | outside disassemble kiln |
Φ2.7×42 | 2.7 | 42 | 3.5 | 320 | 0.10-1.52 | 55 | 198.5 | ------ |
Φ2.8×44 | 2.8 | 44 | 3.5 | 450 | 0.437-2.18 | 55 | 201.58 | outside disassemble kiln |
Φ3.0×45 | 3 | 45 | 3.5 | 500 | 0.5-2.47 | 75 | 210.94 | ------ |
Φ3.0×48 | 3 | 48 | 3.5 | 700 | 0.6-3.48 | 100 | 237 | outside disassemble klin |
Φ3.0×60 | 3 | 60 | 3.5 | 800 | 0.3-2 | 100 | 310 | ------ |
Φ3.2×50 | 3.5 | 50 | 4 | 1000 | 0.6-3 | 125 | 278 | disassemble klin |
Φ3.3×52 | 3.3 | 52 | 3.5 | 1300 | 0.266-2.66 | 125 | 283 | kiln with preheater precalcine |
Φ3.5×54 | 3.5 | 54 | 3.5 | 1500 | 0.55-3.4 | 220 | 363 | kiln with prehrater precalcine |
Φ3.6×70 | 3.6 | 70 | 3.5 | 1800 | 0.25-1.25 | 125 | 419 | Generating klin for usimg ofterheat |
Φ4.0×56 | 4 | 56 | 4 | 2300 | 0.41-4.07 | 315 | 456 | klin with prehrater precalcine |
Φ4.0×60 | 4 | 60 | 3.5 | 2500 | 0.396-3.96 | 315 | 510 | klin with prehrater precalcine |
Φ4.2×60 | 4.2 | 60 | 4 | 2750 | 0.41-4.07 | 375 | 633 | klin with prehrater precalcine |
Φ4.3×60 | 4.3 | 60 | 3.5 | 3200 | 0.396-3.96 | 375 | 583 | klin with prehrater precalcine |
Φ4.5×66 | 4.5 | 66 | 3.5 | 4000 | 0.41-4.1 | 560 | 710.4 | klin with prehrater precalcine |
Φ4.7×74 | 4.7 | 74 | 4 | 4500 | 0.35-4 | 630 | 849 | klin with prehrater precalcine |
Φ4.8×74 | 4.8 | 74 | 4 | 5000 | 0.396-3.96 | 630 | 899 | klin with prehrater precalcine |
Φ5.0×74 | 5 | 74 | 4 | 6000 | 0.35-4 | 710 | 944 | klin with prehrater precalcine |
Φ5.6×87 | 5.6 | 87 | 4 | 8000 | Max4.23 | 800 | 1265 | klin with prehrater precalcine |
Φ6.0×95 | 6 | 95 | 4 | 10000 | Max5 | 950×2 | 1659 | klin with prehrater precalcine |
