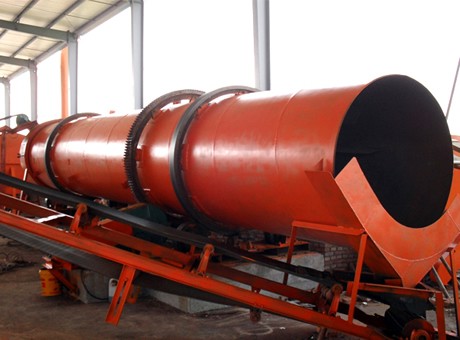

Rotary Drum Cooler

Rotary Drum Cooler

Production capacity: 2–36 t/h
Main motor: 15–132 kw
Installation obliquity: 3–5 %
Material handling: cement, silicate, etc

Free download pdf (Product information) (876.00KB) Get price list

0086-0371-63313738/0086-18039114854

We will provide you with the best quality service.If you are interested in our products,
you can click the button and contact us.
market@hxjq.com Send Enquiry

Rotary drum cooler is one of the important machines in rotary kiln system. The barrel-shaped rotary drum cooler rotates through cylinder driven by electromotor, it is called rotary drum cooler.

The function of rotary drum cooler is to conduct heat exchange between the high temperature materials from the rotary kiln and the air in order to cool the materials and improve the quality and grindability of clinker.

dryer

The Working Principle of Rotary Drum Cooler

The wet materials are fed into the hopper through belt conveyor or bucket elevator. The clinker will be raised up for many times and then evenly spread and it exchanges heat with the cooling air.

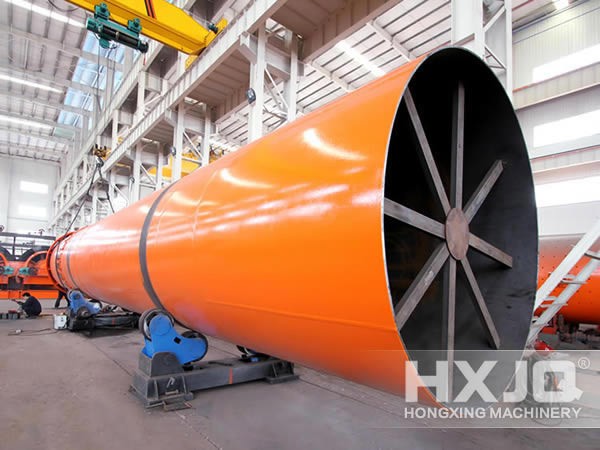

Rotary Drum Cooler

Especially in low temperature zone, the inclination angle and the speed can be adjusted by improving the structure and distribution of the spreading boards to increase the contact with air and control the movement speed, making the heat have plenty of time to conduct to the surface, resulting into the sufficient recycle of the heat from the low temperature clinker.

Parameters Type

Spec./m
(Dia×Length)
Capacity
(t/h)
Installation
Obliquity
(%)
Main Reducer

Main Motor
(kw)
Weight
(t)
Φ1.5×15 2~3 3~5 ZQ500 15 28
Φ1.5×20 3~4 3~5 ZQ500 15 35
Φ1.8×18 4~6 3~5 ZQ500 18.5 47
Φ2.0×22 7~8.5 3~5 ZQ500 22 61
Φ2.2×18 7~8.5 3~5 ZQ500 22 64
Φ2.2×22 8~10 3~5 ZQ650 30 73
Φ2.4×24 12~15 3~5 ZS125 45 98
Φ2.5×25 15~20 3~5 ZS125 55 110
Φ2.8×28 16~22 3~5 ZL100 55 130
Φ3.0×30 20~25 3~5 ZL115 75 169
Φ3.2×36 28~32 3~5 ZL115 90 200
Φ3.3×40 32~36 3~5 ZI130 132 237
Φ3.6×36 35~38 3~5 ZSY450-28 185 318
Φ4.0×36 50~60 3~5 ZSY450-25 220 348
Φ4.0×45 60~70 3~5 ZSY450-25 250 414
Φ4.5×50 70~75 3~5 ZSY500-25 315 576
