High-Strength Raymond Mill

High-Strength Raymond Mill

Processing ability: 2-120 t/h
Feeding size: ≤15-≤30mm
Applied material: barite, calcite, feldspar, talc, marble, limestone, dolomite, fluorite.

Free download pdf (Product information) (1.25M) Get price list Operating Instruction Henan Hongxing Heavy Machinery Co., Ltd. POWDER MAKIING MACHIINE(1.67M)

0086-0371-63313738/0086-18039114854

We will provide you with the best quality service.If you are interested in our products,
you can click the button and contact us.
market@hxjq.com Send Enquiry

Hign-Strength Raymond Mill

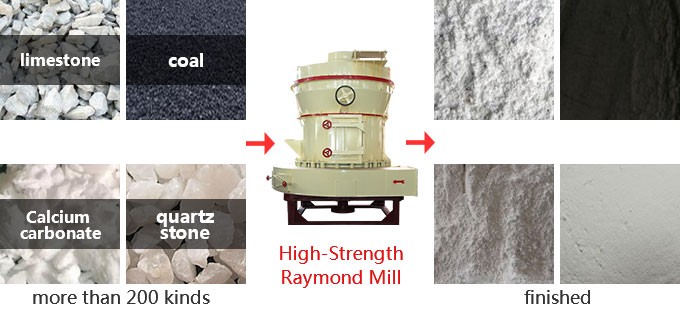

High-strength raymond mill is used for grinding the barite, limestone, kaolin, cerames, and slags, etc, below scale 9.3 of Mohs hardness and 280-odd sorts of non-inflammable and non-explosive stuff in the trades of mining, metallurgical industry, chemical engineering and building material for high fine powder generation and processing.



The product size is adjustable in the range of 80-425 (1000 the finest) meshes. High-strength raymond mill is possible to produce 30-80 mesh coarse powder through special device in the machine.

Raymond mill

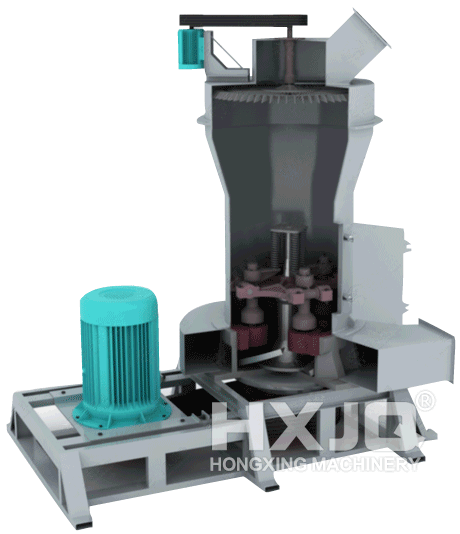

Working Process of High-strength Raymond Mill:

In the main frame, a 100 -1500 kg powered pressure spring is fixed to the roller suspender. After the grinder is put into effect, the roller rotates around the main shaft, and rolls closely against the ring pressed by the high pressure spring and centrifugal force. And its rolling pressure ration is 1.2 times higher than that of the raymond grinder under the same power condition and the production output is raised to substantial degree.


When a certain degree of wear of roller and ring is effected, it is recommended to adjust the length of the spring to maintain the constant pressure between the roller and the ring. As a result, the stable output and fineness are ensured.

Parameters Type

Model 4525 4119
Feeding Size(mm) ≤30 ≤25
Output Size(mm) 0.173-0.044 0.173-0.044
Shift Output of Different Material Fineness(t) 16-176 8-78
Rotation Speed of Central Shaft(r/min) 82 105
Ring Diameter(mm) 1770 1400
Roller Diameter(mm) 450 410
Roller Height(mm) 250 190
Main Motor Y315M-4-132 Y280S-4-75
Fan Motor Y315M-4-132 Y280S-4-75
Analyzer Motor YCT250-4A-18.5 YCT200-4B-7.5
