Lime Kiln

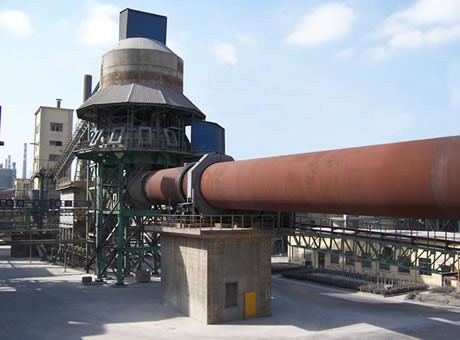

Lime Kiln

Production capacity: 150–1000 t/d
Burning temperature: 1250 °C
volume: 142–575 m³
Application range: active lime, calcined dolomite, etc

Get price list

0086-0371-63313738/0086-18039114854

We will provide you with the best quality service.If you are interested in our products,
you can click the button and contact us.
market@hxjq.com Send Enquiry

Brief Introduction to Lime Kiln:

Lime kiln is also known as lime rotary kiln, horizontal lime kiln, quick lime plant or lime plant,  and it is mainly composed of kiln body, feeding device, distributing device, burning device, ash unloading device, engine, instrumental control device, dust collector and so on. For lime kiln, it can be classified into horizontal lime kiln and vertical lime kiln.

 For different lime pit, there are different structures and methods of calcinations. The working processes are basically the same but there are great differences of the value of equipments. Generally, lime rotary kiln plays an important role in quick lime plant or lime plant.

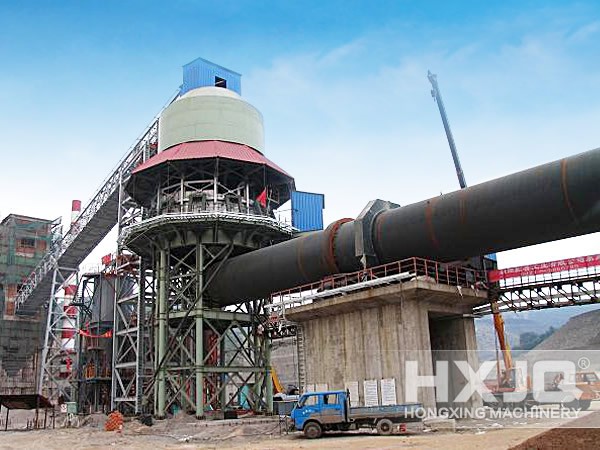

Lime Kiln

Working Principle of Lime Rotary Kiln:

Limestone and fuel are loaded into the lime kiln (if the fuel is the gas, it should be sent through pipes and burner), preheating to 850 degrees, they are began to break down, and to 1200 degrees, calcinations is completed. And after being cooled, they could be removed from the kiln to complete the lime production.

There are different ways of preheating, burning, cooling and dust unloading of different furnaces. However, there are some common principles like high quality of raw material and lime, high calorific value of fuel and low consumption and so on.

Advantages of Lime Kiln:

1. Lime kiln adopts energy saving calcination way.
2. Great dust collector.
3. Compact and reasonable structure.
4. Scientific process and make the best use of waste heat.
5. Reasonable price and long life expectancy.

Parameters Type

Design
capacity
(t/d)
150 200 250 300 350 400 500 600 750 800 1000
Product Active
 lime
Calcined
dolomite
Active
lime
Calcined
dolomite
Active
lime
Calcined
dolomite
Active
lime
Calcined
dolomite
Active
lime
Calcined
dolomite
Active
lime
Calcined
dolomite
Active
lime
Calcined
dolomite
Active
lime
Calcined
dolomite
Active
 lime
Calcined
dolomite
Active
lime
Calcined
dolomite
Active
 lime
Calcined
dolomite
Preheater round
vertical
pre-
heater
or
polygonal
vertical
pre-
heater
round
vertical
pre-
heater
 or
polygonal
vertical
pre-
heater
round
vertical
pre-
heater
or
polygonal
vertical
pre-
heater
round
vertical
pre-
heater
or
polygonal
vertical
pre-
heater
round
vertical
pre-
heater
or
polygonal
vertical
pre-heater
round
vertical
pre-
heater
or
polygonal
vertical
pre-
heater
round
vertical
pre-
heater
or
polygonal
vertical
pre-
heater
round
vertical
pre-
heater
or
polygonal
vertical
pre-
heater
Vertical
Polygon
preheater
Vertical
Polygon
preheater
Vertical
Polygon
preheater
Rotary
kiln
Specification
(m)
Φ2.5
× 40
Φ2.8
× 42
Φ3
× 46
Φ3.2
× 50
Φ3.5
× 54
Φ3.6
× 56
Φ3.8
× 58
Φ4×60
Φ4.2×50
Φ4.3
× 58
Φ4.3
× 64
Φ4.8
× 68
Effective
volume
(m³)
142 190 235 292 390 430 505 575/548 670 738 1005
Burning
temperature
(°C)
1350/
1250
1350/
1250
1350/
1250
1350/
1250
1350 1350 1350 1350 1350 1350 1350
Cooler Vertical
Square
Cooler
Vertical
Square
Cooler
Vertical
Square
Cooler
Vertical
Square
Cooler
Vertical
Square
Cooler
Vertical
Square
Cooler
Vertical
Square
Cooler
Vertical
Square
Cooler
Vertical
Square
Cooler
Vertical
Square
Cooler
Vertical
Square
Cooler
Fuel Coal gas
Coal powder
Coal gas
Coal powder
Coal gas
Coal powder
Coal gas
Coal powder
Coal gas
Coal powder
Coal gas
Coal powder
Coal gas
Coal powder
Coal gas
Coal powder
Coal gas
Coal powder
Coal gas
Coal powder
Coal gas
Coal powder
Heat rate
(
KJ/KgC3O
)
5300/
5000
5300/
5000
5300/
5000
5300/
5000
5225 5225 5100 5100 4810 4810 4810
