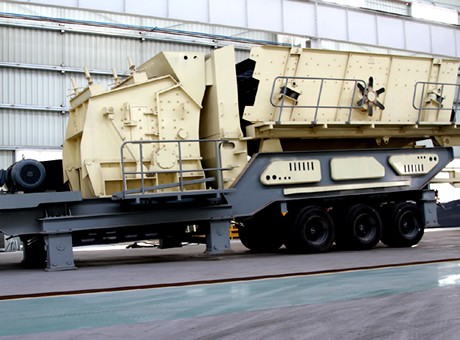

Mobile Impact Crusher

Mobile Impact Crusher

Production capacity: 30-550t/h
Feed size: 300-700mm
Processible materials: Limestone,dry mortar, pebbles, cobble, basalt calcite, all metal ores, glass, dolomite, coal gangue, basalt, etc.

Free download pdf (Product information) (1.18M) Get price list

0086-0371-63313738/0086-18039114854

We will provide you with the best quality service.If you are interested in our products,
you can click the button and contact us.
market@hxjq.com Send Enquiry

Putting crushing and screening process on wheels really boosts process efficiency. In order to break the obstacles of crushing site and complicated configuration, we designed and produced the mobile impact crusher with features of simple operation and high efficiency.

Mobile impact crusher offers maximum set-up flexibility, from course to fine crushing, and is cost efficient. It improves the working safety, reduces the need for quarry road maintenance, and gives better access to material resources. A further benefit is that waste material can be separated on-site.

mobile impact crusher

Crawler mobile impact crushing plant is designed and researched by our experienced engineers according to the customers' requirement.

Tell us your detailed requirement and we can design the suitable model for you, contact us now~

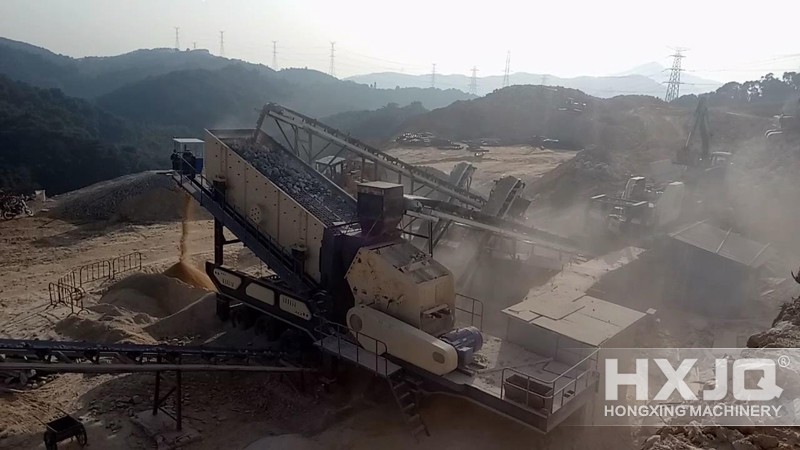

mobile impact crushing plant

Parameters Type

Model HX938F1210 HX938F1214 HX1149F1315 HX938F1110 HX1349F1315
Transportation Length(mm) 12000 12000 13900 15450 15450
Transportation Width(mm) 2550 2550 2900 2950 2950
Transportation Height(mm) 3900 3900 4450 4500 4500
Maximum Length(mm) 12500 12500 13900 15450 15450
Maximum Width(mm) 3250 3260 3250 3250 3250
Maximum Height(mm) 5100 5200 5200 5200 5200
Weight(t) 39 44 54 62 62
Crusher Model PF-1210 PF-1214 PF-1315 HD1110 HD1315
The Maximum Feeding Size(mm) 350 350 500 400 700
Production Capacity(t/h) 70-130 100-180 130-250 112 280
Vibrating Feeder ZSW950×3800 ZSW950×3800 ZSW110×4900 ZSW130×4900 ZSW130×4900
Main Belt Conveyor B800×8.5M B800×8.5M B1000×9.5M B800×11M B1200×11M
Side-opening Belt conveyor(Optional) B500×3.2M B500×3.2M B650×4M B650×4M B650×4M
Genset(Optional) (kw) 320 320 400 320 440
Iron Separator (Optional)(kw) RCYD(C)-8 RCYD(C)-8 RCYD(C)-10 RCYD(C)-8 RCYD(C)-12
