Rotary Kiln

Rotary Kiln

Specification: Φ2.5×40m-Φ6.0×95(m)
Processing capacity: 180-1000(t/d)
Applied material: dolomite, active lime, cement clinker, and bauxite.
Applied area: portland cement making industry.

Free download pdf (Product information) (1.02M) Get price list Operating Instruction Henan Hongxing Heavy Machinery Co., Ltd. M BUILDING MATERIIALS EQUIIPMENTclick on download(1.85M)

0086-0371-63313738/0086-18039114854

We will provide you with the best quality service.If you are interested in our products,
you can click the button and contact us.
market@hxjq.com Send Enquiry

Rotary Kiln Description

Rotary kiln refers to rotating calcining kiln (also known as rotating kiln), which belongs to thermal equipment. Rotary kiln can be divided into metallurgy kiln, limestone rotary kiln, and cement rotary kiln according to its different dealing materials.

Metallurgy rotary kiln is mainly used for the magnetizing calcining of lean iron ore in iron and steel plant in metallurgy industry, the chromites and josephinite oxidizing calcining, calcining of dewalquite and clinker aggregate and aluminum hydroxide roasting in aluminum factory. The limestone rotary kiln (activity limestone kiln) is used for calcining activity lime and dolomite in iron and steel plant and ferroalloy works.

Components of Clinker Rotary Dryer

1. The most common driving components are gear reducers. Gear reducers are used when reduced speed or increased torque is required. We use a gear reducer on the kiln. Rotation in and out, rollback capability, reversibility, and actual speed reduction, overall torques are all specifications required for designing a gear box.

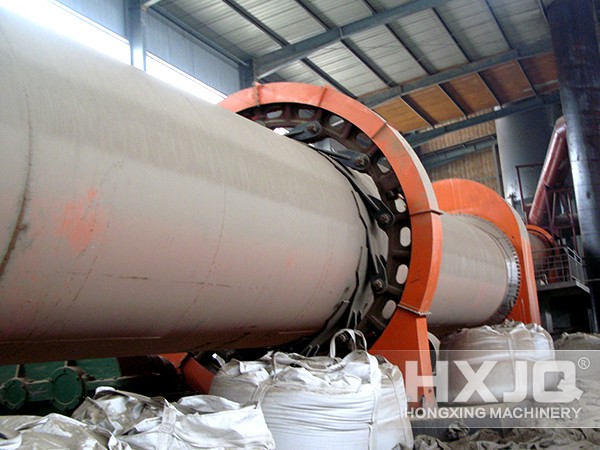

Rotary kiln

2. Hydraulic couplings are also used in some fan applications where speed control is required. Hydraulic couplings are not used as much due to their size and inefficient characteristics. The simplest drive components are belt drive systems. Belt drive systems are used mainly on fans and screw conveyors; however, direct coupling the motor to the unit will reduce maintenance.

3. Bearings are in every moving piece of equipment. Bearings are also uniquely designed for their application. The most common bearings are the anti-friction bearings or roller bearings. These bearings have become standardized and perform excellently in almost any condition. Anti-friction bearings do not work well with heavy loads. Specialized bearings are used on the kiln where high loads are seen.

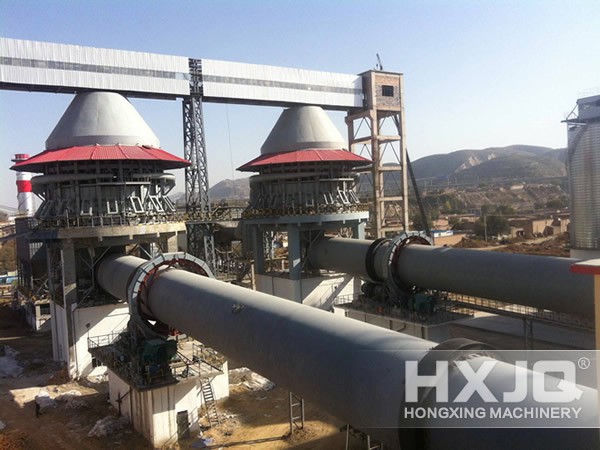

rotary kiln

Rotary Kiln Technical Features

1. With advanced structure, the low pressure loss of the vertical preheated can speed up the preheating process; the decomposition rate in the kiln of the preheated limestone can be 20-25%, and can use directly the 10-15mm fine grade limestone.

2. Both ends of rotary kiln are sealed by combination scale, which ensures the index of air leakage less than 10%. In order to lessen the radiation loss, it adopts compound refractory materials.

3.Round or square vertical cooler with filling type and ventilated area, which makes the lime temperature 800 degree Celsius + ambient temperature.

Parameters Type

Product
Specification
(m)
Kiln dimensions Motor
power
(kw)
Total
weight
(t)
note
Diameter
(m)
Length
(m)
Obliquity
(%)
Capacity
(t/d)
Rotation
speed
(r/min)
Φ2.5×40 2.5 40 3.5 180 0.44-2.44 55 149.61 -----
Φ2.5×50 2.5 50 3 200 0.62-1.86 55 187.37 -----
Φ2.5×54 2.5 54 3.5 280 0.48-1.45 55 196.29 outside disassemble kiln
Φ2.7×42 2.7 42 3.5 320 0.10-1.52 55 198.5 ------
Φ2.8×44 2.8 44 3.5 450 0.437-2.18 55 201.58 outside disassemble kiln
Φ3.0×45 3 45 3.5 500 0.5-2.47 75 210.94 ------
Φ3.0×48 3 48 3.5 700 0.6-3.48 100 237 outside disassemble klin
Φ3.0×60 3 60 3.5 800 0.3-2 100 310 ------
Φ3.2×50 3.5 50 4 1000 0.6-3 125 278 disassemble klin
Φ3.3×52 3.3 52 3.5 1300 0.266-2.66 125 283 kiln with preheater precalcine
Φ3.5×54 3.5 54 3.5 1500 0.55-3.4 220 363 kiln with prehrater precalcine
Φ3.6×70 3.6 70 3.5 1800 0.25-1.25 125 419 Generating klin for usimg ofterheat
Φ4.0×56 4 56 4 2300 0.41-4.07 315 456 klin with prehrater precalcine
Φ4.0×60 4 60 3.5 2500 0.396-3.96 315 510 klin with prehrater precalcine
Φ4.2×60 4.2 60 4 2750 0.41-4.07 375 633 klin with prehrater precalcine
Φ4.3×60 4.3 60 3.5 3200 0.396-3.96 375 583 klin with  prehrater precalcine
Φ4.5×66 4.5 66 3.5 4000 0.41-4.1 560 710.4 klin with prehrater precalcine
Φ4.7×74 4.7 74 4 4500 0.35-4 630 849 klin with prehrater precalcine
Φ4.8×74 4.8 74 4 5000 0.396-3.96 630 899 klin with prehrater precalcine
Φ5.0×74 5 74 4 6000 0.35-4 710 944 klin with prehrater precalcine
Φ5.6×87 5.6 87 4 8000 Max4.23 800 1265 klin with prehrater precalcine
Φ6.0×95 6 95 4 10000 Max5 950×2 1659 klin with prehrater precalcine
