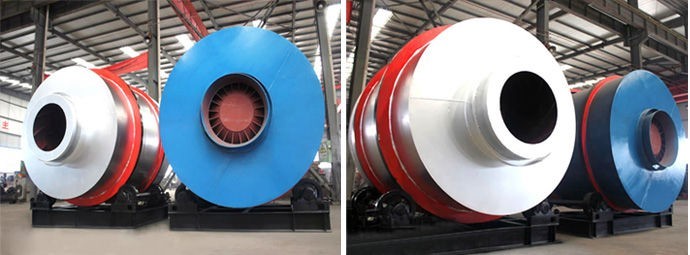

Sand Dryer

Sand Dryer

Production capacity: 2–80 t/h
Main motor: 7.5–160 kw
Material handling: wood, lignite, coal, slime, quartz, sand, slag, limestone, clay, sand, quartz sand, granulating slag, etc.

Free download pdf (Product information) (1.13M) Get price list 29 dollars worth of dryer user manual download for free. <Handbook of Industrial Drying> Download (21.06M)

0086-0371-63313738/0086-18039114854

We will provide you with the best quality service.If you are interested in our products,
you can click the button and contact us.
market@hxjq.com Send Enquiry

General Introduction to Sand Dryer Machine:

Sand dryer is also known as sand dryer machine or sand drying machine. It is widely used to dry sand, river sand, quartz sand, silica sand and other materials. So sometimes, we also call it silica sand dryer.

Hongxing Machinery is famous sand drying equipment manufacturer in China. The products all have guaranteed quality, reasonable price and perfect service. You can leave a message or send us an e-mail to get more information about the machine.

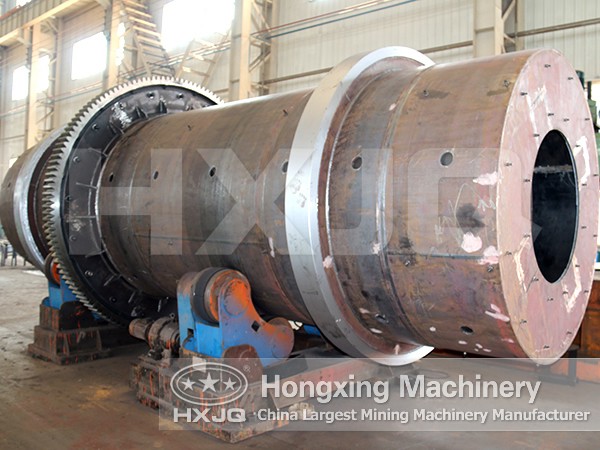

Sand Dryer

Working Principle of Sand Dryer Machine:

Sand is carried into the hopper by belt conveyor or bucket elevator. Then through the feeding pipe, sand will be carried to the feeding end. The cylinder of sand dryer is an oblique rotating one. Materials enter into the cylinder from the higher end and the heat-carrying agent enters into the cylinder from the lower end which makes countercurrent contact with materials.

 With the rotation of cylinder, materials will move to the lower end of the cylinder. In the process of moving forward of materials, sand dryer machine can receive the heat given by heat-carrying agent directly or indirectly to dry the materials. And at last, materials are discharged by belt conveyor or spiral conveyor.

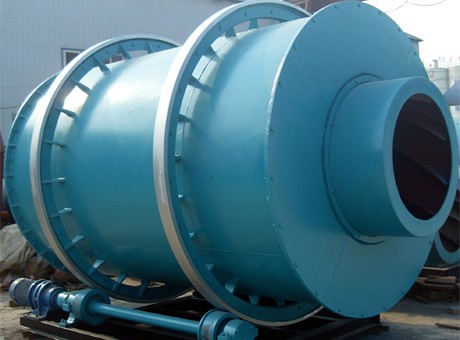

sand dryer

Characteristics of Sand Dryer Machine:

1. High dry intensity. The material highly disperses in the air flow, the whole surface of the material are all effective drying surface.
2. Short drying time.
3. The new internal structure, intensify cleaning of disperse materials and thermal conduction eliminates the adhesion phenomenon of the cylinder wall.

Parameters Type

Spec./m
(Dia.×Length)
Shell Cubage
(m³)
Capacity
(t/h)
Installation
Obliquity
(%)
Highest Inlet
Air Temperature
(℃)
Main Motor
(kw)
Weight
(t)
Φ1.2×8.0
9.0
1.9~2.4
3~5
700~800
7.5
9
Φ1.2×10
11.3
2.4~3.0
3~5
700~800
7.5
11
Φ1.5×12
21.2
4.5~5.7
3~5
700~800
15
18.5
Φ1.5×14
24.7
5.3~6.6
3~5
700~800
15
19.7
Φ1.5×15
26.5
5.7~7.1
3~5
700~800
15
20.5
Φ1.8×12
30.5
6.5~8.1
3~5
700~800
18.5
21.5
Φ1.8×14
35.6
7.6~9.5
3~5
700~800
18.5
23
Φ2.2×12
45.6
9.7~12.2
3~5
700~800
22
33.5
Φ2.2×14
53.2
11.4~14.2
3~5
700~800
22
36
Φ2.2×16
60.8
13.0~16.2
3~5
700~800
22
38
Φ2.4×14
63.3
13.5~16.9
3~5

700~800
37
45
Φ2.4×18
81.4
17.4~21.7
3~5
700~800
37
49
Φ2.4×20
90.4
19.3~24.1
3~5
700~800
45
54
Φ2.4×22
99.5
21.2~26.5
3~5
700~800
45
58
Φ2.6×24
127.4
27.2~34.0
3~5
700~800
55
73
Φ3.0×20
141.3
30.1~37.7
3~5
700~800
75
85
Φ3.0×25
176.6
37.7~47.1
3~5
700~800
75
95
Φ3.2×25
201
42.9~53.6
3~5
700~800
90
110
Φ3.6×28
285
60.8~76.0
3~5
700~800
160
135

Technical parameters of indirect heat dryer:

  Shell
diameter
×shell
Length
Items
Inside
diameter
of outer
shell
(mm)
Inside
diameter
of inner
shell
(mm)
Shell
 Length
(m)
Shell
 cubage
(m³)
Shell
obliquity
Lifting
blade
 form
Highest
inlet air
 temperature
(℃)
Dimensions
(m)
Φ1.5×15m 1500 500 15 20.27 3-5% Lifting form 850 16.2×2.7×2.7
Φ1.5×17m 17 22.97 18.2×2.7×2.7
Φ1.5×19m 19 25.68 20.0×2.9×2.9
Φ1.8×21m 1800 650 21 35.91 3-5% Lifting form 850 22.5×2.7×2.7
Φ1.8×23m 23 39.33 24.5×2.9×2.9
Φ1.8×25m 25 42.75 26.5×2.9×2.9
Φ2.2×21m 2200 800 21 58.10 3-5% Lifting form 850 ----
Φ2.2×23m 23 63.61
Φ2.2×25m 25 69.15
