Bucket Elevator

Bucket Elevator

Hoisting Height:28-32.7m
Conveying Capacity:3-60m³/h
Range of application:Coal, cement, stone, sand, clay and ore.

Free download pdf (Product information) (857.00KB) Get price list

0086-0371-63313738/0086-18039114854

We will provide you with the best quality service.If you are interested in our products,
you can click the button and contact us.
market@hxjq.com Send Enquiry

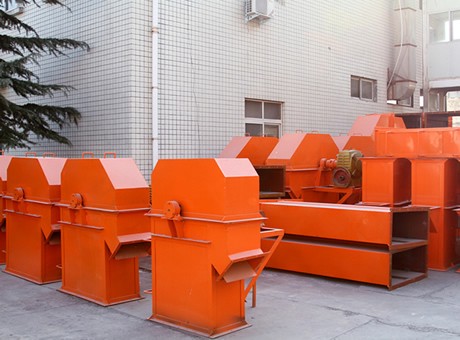

Bucket Elevator

The bucket elevator is mainly used for raising material to a certain height. It is also known as bucket conveyer, hoist conveyor or bucket hoist.
It can transport materials like coal, cement, stone, sand, ore, and so forth. Since the traction mechanism adopts the circular chain with vat on it, bucket elevator is also called hoist bucket.

The bucket elevator can transport material with temperature of not more than 250 degree to the height of as high as 80 meters.

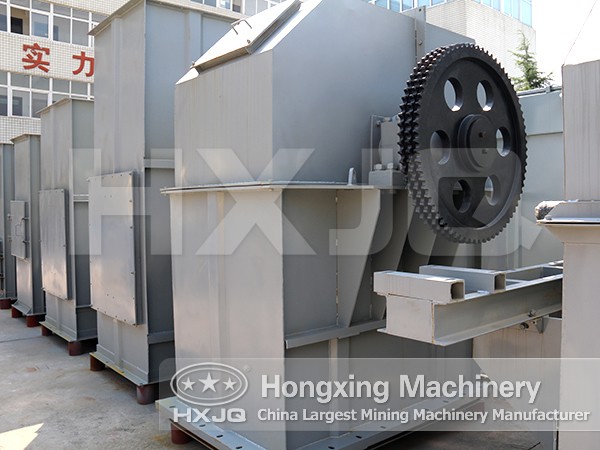

Bucket Elevator

The Working Principle of Bucket Elevator

When the material is fed into the hopper through the vibration table, the machine will automatically and continuously transport it upward. According to the amount of material, the speed and height can be adjusted. All parts are made according to the actual needs.

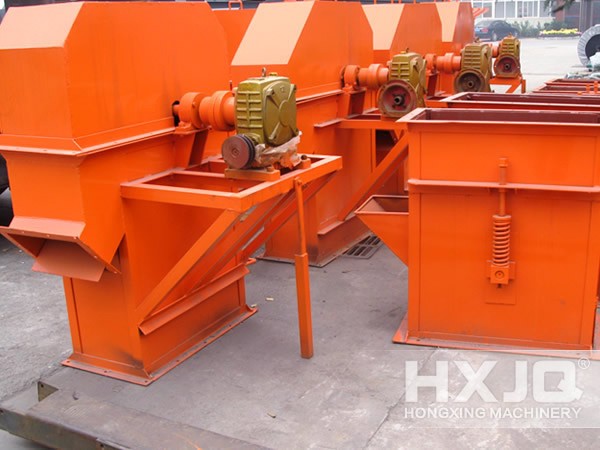

Bucket Elevator

The Classification of Bucket Elevator

Bucket elevator uses a series of hoppers which are evenly fixed on the traction mechanism to vertically lift materials. It falls into three types: bucket type lifter, plate chain bucket elevator and belt conveyor.

The Characteristics of Bucket Elevator

1. Small motor power, flow type feeding, induction discharge, intensive hopper arrangement, almost no material returning phenomenon.
2. Wide application, elevating not only powdery material but also granular and bulk material.
3. Long service life. The flow type feeding reduces machine abrasion.
4. Reliable operation. Advanced design philosophy and processing methods can ensure the steady running of 20,000 hours.

The bucket type lifter and plate chain bucket elevator are the two most commonly seen types.
They usually adopt flow type feeding. The material will be raised to the top by the plate chain. Under the gravity, it discharges automatically. This machine is available in various specifications, features high efficiency, and low energy consumption. Generally, it adopts closed circuit casing, so it is outstanding for low noise and long service life.

Parameters Type

Technical parameters of ring chainbucket elevator

Specification Max.lifting height
(m)
Conveying capacity
(m³/h)
Max.size
(mm)
Pitch of buckets
(mm)
Motor prower
(kw)
TH160 25 7-12 15-20 400 3-4
TH200 28 8-15 20-30 500 3-5.5
TH250 30 10-25 25-35 500 4-7.5
TH300 30 25-35 30-40 500 5.5-11
TH315 40 30-40 35-45 512 5.5-15
TH400 40 45-60 40-55 512 11-22
TH500 40 65-80 50-60 512 15-30
TH630 40 100-120 60-65 688 18.5-37
TH800 40 130-150 65-75 920 22-45

Technical parameters of wire belt bucket elevator

Specification Max.lifting height
(m)
Conveying capacity
(m³/h)
Max.size
(mm)
Bucket Volume
(L)
Motor prower
(kw)
TDG160 80 34 0-20 2.6 2.2-11
TDG200 80 45 0-25 4.1 3-15
TDG250 80 71 0-30 6.5 5.5-22
TDG315 80 101 0-35 10 7.5-30
TDG400 80 158 0-40 16 15-45
TDG500 80 218 0-45 25 18.5-55
TDG630 80 345 0-50 40 30-90
TDG800 80 491 0-50 61 45-132

Plate chain bucket elevator

Specification Max.lifting height
(m)
Max.lifting capacity
(m³/h)
 Percentageallowed
(%)
Pitch
(mm)
Motor power
(kw)
10 25 50 75 100
Max.size(mm)
NE15 40 16 65 50 40 30 25 101.66 1.5-4
NE30 59 31 90 75 58 47 40 152.4 2.2-7.5
NE50 62 60 90 75 58 47 40 152.4 3-15
NE100 58 110 130 105 80 65 55 200 7.5-30
NE150 65 170 130 105 80 65 55 200 11-37
NE200 73 220 170 135 100 85 70 250 18.5-75
NE300 61 320 170 135 100 85 70 250 22-75
NE400 47 420 205 165 125 105 90 300 45-90
NE500 58 500 240 190 145 120 100 300 45-132
