Spiral Classifier

Spiral Classifier

Processing ability: 0.15-6 t/h
Spiral diameter: 300-3000 mm
Applied material: iron ore, ilmenite, chromite, pyrite, zircon, rutile, monazite, tungsten, tin, tantalum, niobium, etc

Free download pdf (Product information) (1005.00KB) Get price list TECHNICAL RESOURCE DOCUMENT EXTRACTION AND BENEFICIATION OF ORES AND MINERALS(577.00KB)

0086-0371-63313738/0086-18039114854

We will provide you with the best quality service.If you are interested in our products,
you can click the button and contact us.
market@hxjq.com Send Enquiry

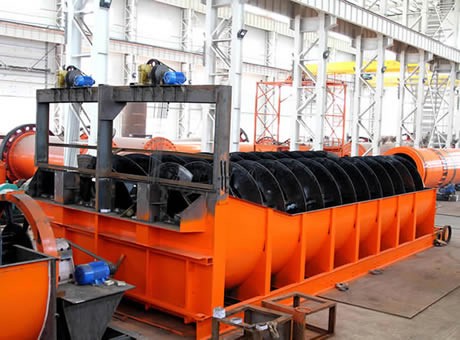

Hongxing Brand Professional Spiral Classifier

Hongxing's screw classifiers are designed to provide the most effective pool area and overflow velocity requirements. Our spiral classifier is widely used in the distribution of ore in closed circuits with ball mills, grading ore and fine slit in gravity mills, grading granularity and flow of metal ore-dressing, and de-sliming and dehydrating in washing.

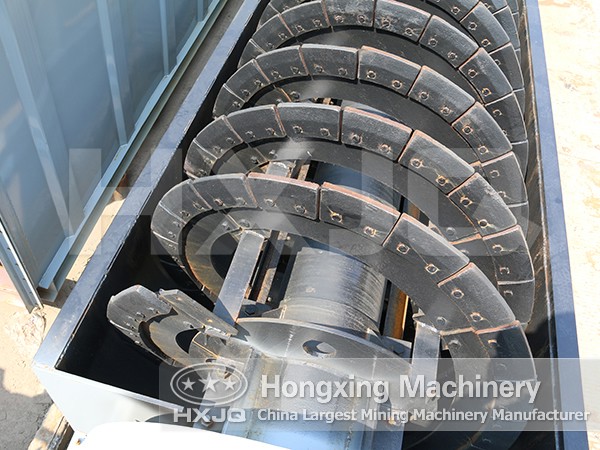

Spiral classifier is made of U-steel, while the body is armor plated and the spiral axle is made of cast iron for durability. The machine's lifting equipment can be used manually or electronically. Spiral classifier consists of transmission part, spiral axis, tank, elevator mechanism, bearing, discharge valve. Spiral classifier is with simple structure, reliable working conditions and convenient operation.

Spiral classifier

Main Advantages of Screw Classifiers

China screw classifier can filter materials and send coarse materials towards the feeding mouth and discharge fine materials from your pipe. The machines lifting equipment can be utilized manually or electronically. Spiral classifier price produced by our company is reasonable. For this reason, we have large domestic and overseas market.

spiral classifier

Application Scope of Ore Spiral Classifier

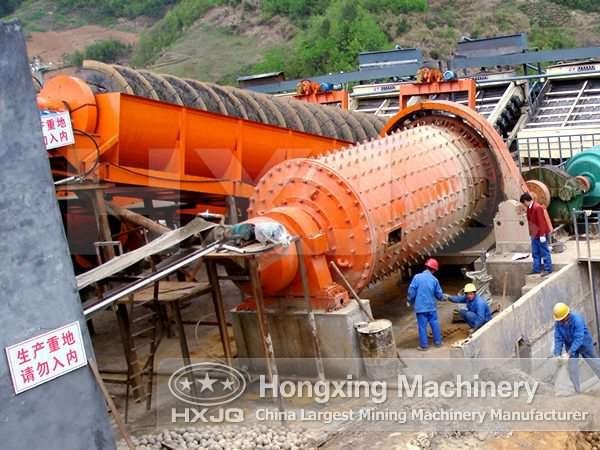

Combined with ball mill to form closed loop procedure, ore spiral classifier is widely applied in the ore beneficiation plant or gravity spiral classifier plant to separate mineral sand or fine sand. In addition, spiral concentrator is also applied in the metal ore beneficiation procedure to separate the ore pulp as well as desliming or dehydration operation in the ore washing process. Ore spiral classifier has the features of simple structure, reliable working and convenient operation and the like.

classifier

Parameters Type

Model Spiral
Diameter
(mm)
Trough
Length
(mm)
Spiral
rotate
speed
(r/min)
Processing
capacity(t/d)
Motor
Power
(kw ≤)
Dimensions
(mm≤)
Total
weight
(t)
Sand
-return
Overflow For
driving
For
lifting
Length Width Height
FG-3 300 3000 12-30 80-150 20 1.1 ---- 3850 490 1140 0.7
FG-5 500 4500 8-12.5 135-210 32 1.1 ---- 5430 680 1480 1.9
FG-7 750 5500 6-10 340-570 65 3 ---- 6720 980 1820 3.1
FG-10 1000 6500 5-8 675-1080 110 5.5 ---- 7590 1240 2380 4.9
FC-10 8400 675-1080 85 7.5 ---- 9600 1240 2680 6.2
FG-12 1200 6500 4-6 1170-1870 155 7.5 2.2 8180 1570 3110 8.5
FC-12 8400 1170-1870 120 7.5 2.2 10370 1540 3920 11.0
2FG-12 6500 2340-3740 310 15 4.4 8230 2790 3110 15.8
2FC-12 8400 2340-3740 240 15 4.4 10370 2790 3920 17.6
FG-15 1500 8300 4-6 1830-2740 235 7.5 2.2 10410 1880 4080 12.5
FC-15 10500 1830-2740 185 7.5 2.2 12670 1820 4890 16.8
2FG-15 8300 2280-5480 470 15 4.4 10410 3390 4080 22.1
2FC-15 10500 2280-5480 370 15 4.4 12670 3370 4890 30.7
FG-20 2000 8400 3.6-5.5 3290-5940 400 11-15 3 10790 2530 4490 20.5
FC-20 12900 3210-5940 320 11-15 3 15610 2530 5340 28.5
2FG-20 8400 7780-11880 800 22-30 6 11000 4600 4490 35.5
2FC-20 12900 7780-11880 640 22-30 6 15760 4600 5640 48.7
FG-24 2400 9130 3.67 6800 580 15 3 11650 2910 4970 26.8
FC-24 14130 6800 490 18.5 4 16580 2930 7190 41.0
2FG-24 9130 13600 1160 30 6 12710 5430 5690 45.8
2FC-24 14130 13700 910 37 8 17710 5430 8000 67.9
2FG-30 3000 12500 3.2 23300 1785 40 8 16020 6640 6350 73.0
2FC-30 14300 23300 1410 ---- ---- 17091 ---- 8680 84.8
