Flotation Machine

Flotation Machine

Processing ability: 0.2–16 m³/min
Impeller rotation speed: 191–400 r/min
Dimensions: 700×700×750–2200×2900×1400 mm

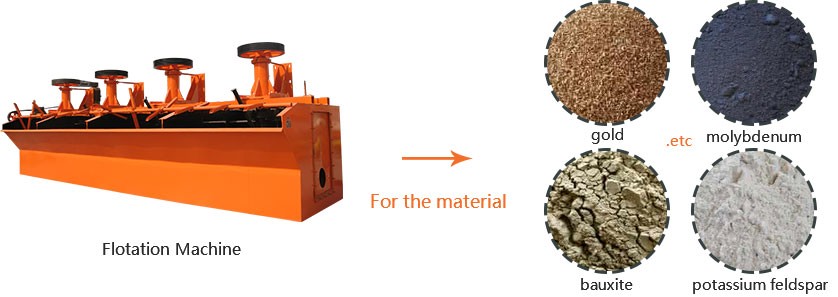

Applied material: non-ferrous metals, ferrous metals, precious metals, non-metallic mineral.gold ore, copper ore, silver ore , manganese ore, lead-zinc ore, nickel ore, phosphate ore, etc

Free download pdf (Product information) (1005.00KB) Get price list TECHNICAL RESOURCE DOCUMENT EXTRACTION AND BENEFICIATION OF ORES AND MINERALS(577.00KB)

0086-0371-63313738/0086-18039114854

We will provide you with the best quality service.If you are interested in our products,
you can click the button and contact us.
market@hxjq.com Send Enquiry

Flotation Machine

Flotation machine is used for classifying in non-ferrous and ferrous metal mineral. SF flotation cell is the mechanical agitation type, and it can draw the inspiration and the pulp. Compared with other flotation plants, its spirit is big; and the power loss is low, and the impeller lap wears lightly.

Description of Flotation Cells

Flotation cells or flotation separator is used in classifying in non-ferrous and ferrous metal mineral. SF flotation cell is the mechanical agitation type, and it can draw the inspiration and the pulp. Compared with traditional flotation cell, the power loss is low and the impeller lap wears lightly.

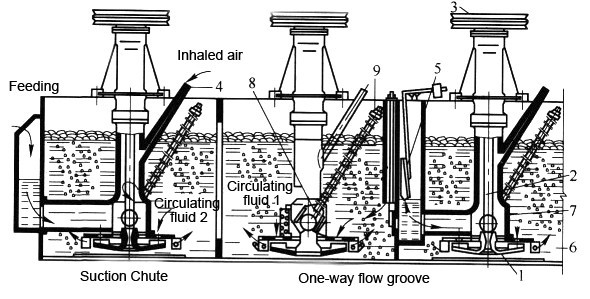

Working Principle of Flotation Machine

Working Principle of Flotation Machine

When flotation machine or flotation separator works, slurry is inhaled from the bottom of the trough to the space between impellers. Meanwhile, the low-pressure air sent by fan is sent to this area through the air distributor in the hollow shaft. After sufficient mixing, the slurry is pushed out by the impeller, and then goes to the whole trough. When the froth rises to the stable level, after the enrichment processing, froth overflows to the froth trough from the overflow weir.

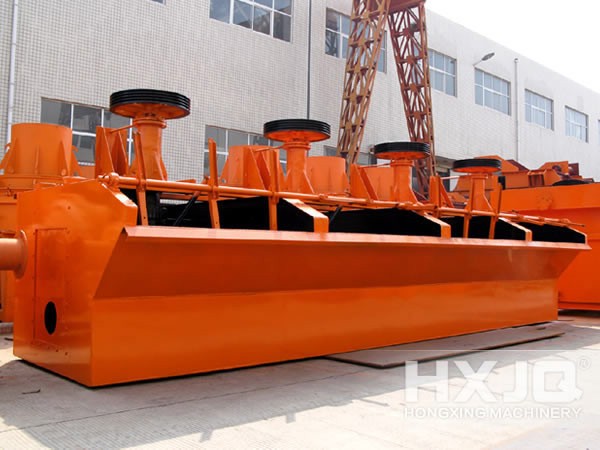

flotation separation

Another part of ore slurry flows to lower part of impeller for the remixing with air. The remaining slurry flows to the next trough until it becomes residue.

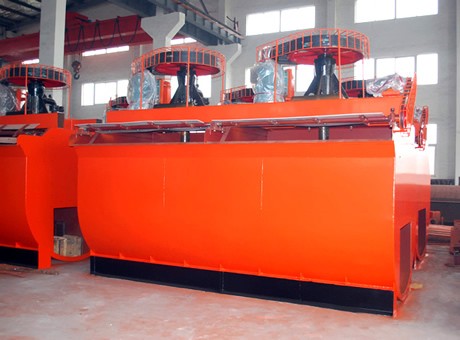

flotation machine

Features List of Ore Flotation Equipment

(1)The capacity of air suction is large; the power consumption is low.
(2)Every flotation machine has three functions of air suction, slurry suction and flotation simultaneously being unique in flotation return circuit without need for any supplement and equipment; the circuit change is convenient for horizontal location.
(3)The slurry cycle is rational; the settlement of coarse sand can be reduced into full play.
(4)The regulation is convenient to equip auto and electro-controlling arrangements for slutty level.

Parameters Type

Category Specification
Model
Effective
cubage
(m³)
Processing
capacity
(m³/min)
Main shaft     loam board Dimensions
(L×W×H)
(m)
Single
 trough
Weight
(t)
Power(kw) Rotate Speed(r/min) Rotate Speed(r/min) Power(kw)
XJK type
flotation
machine
XJK-0.35 0.35 0.18-0.4 1.5 483 25 1.1 0.7×0.7×0.7 0.5
XJK-0.62 0.62 0.3-0.9 3.0 400 25 1.1 0.90×0.82×0.85 1.0
XJK-1.1 1.1 0.6-1.6 5.5 330 25 1.1 1.1×1.1×1 1.4
XJK-2.8 2.8 1.5-3.5 11 280 25 1.1 1.75×1.6×1.1 2.5
XJK-5.8 5.8 5-7 22 240 25 1.5 2.2×2.2×1.2 3.6
SF type
flotation
machine
SF-0.37 0.37 0.2-0.4 1.5 386 25 1.1 0.7×0.7×0.75 0.5
SF-0.7 0.7 0.3-0.9 3 400 25 1.1 0.9×0.82×0.95 1.0
SF-1.2 1.2 0.6-1.6 5.5 330 25 1.1 1.1×1.1×1.1 1.9
SF-2.8 2.8 1.5-3.5 11 268 25 1.1 1.75×1.6×1.15 2.6
SF-4 4 2-4 15 220 25 1.5 1.85×2.05×1.2 2.9
SF-8 8 4-8 30 191 25 1.5 2.2×2.9×1.4 4.2
SF-10 10 5-10 30 191 25 1.5 2.2×2.9×1.7 4.5
SF-20 20 5-20 30×2 191 25 1.5 2.85×3.8×2 9.9
JJF type
flotation
machine
JJF-2 2 1-3 7.5 443 25 1.5 1.4×1.4×1.1 1.7
JJF-4 4 2-4 11 305 25 1.5 1.6×2.15×1.25 2.4
JJF-8 8 4-8 22 233 25 1.5 2.2×2.9×1.4 4.5
JJF-10 10 5-10 22 233 25 1.5 2.2×2.9×1.7 4.9
JJF-16 16 5-16 30 180 25 1.5 2.85×3.8×1.7 8.0
JJF-20 20 5-20 37 180 25 1.5 2.9×3.8×2.0 10.5
