Rotary Screen

Rotary Screen

Processing capacity: 12–150 t/h
Feeding size: 50–150 mm
Power: 0.5–5.5 kw
Material handling: slag, coal gangue, sand, gravel aggregate, etc

Free download pdf (Product information) (1012.00KB) Get price list

0086-0371-63313738/0086-18039114854

We will provide you with the best quality service.If you are interested in our products,
you can click the button and contact us.
market@hxjq.com Send Enquiry

An Overview of Rotary Screen

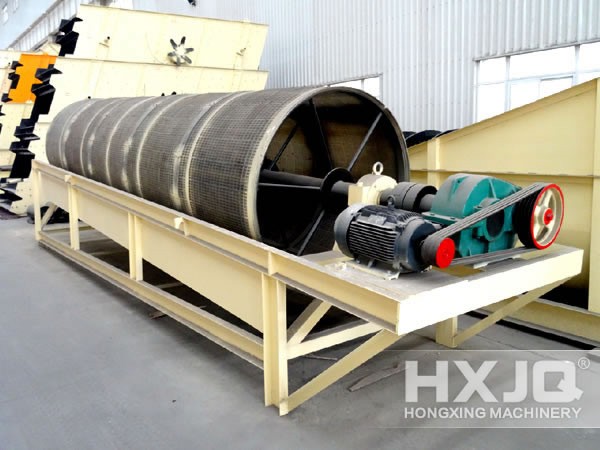

Rotary screen is mainly composed of the motor, reducer, roller device, airtight cover, feed port and discharge port for screening materials.

Rotary screen is mainly used for sieving big or small stones, separating soil and gravel, coal blocks and coal powder, etc. It can also be called gravel screen or stone separator. Since roller device is composed of filter screen, it is also called rotary sieve.

Rotary Screen

In addition, in the mineral processing industry, Rotary screen is also called ore screening equipment or rotary screener. There is not much difference in structure, and the working principle is basically the same.

Rotary Screen

Working Principle of Rotary Screen

Roller device is tiltly installed on the frame. Firstly, motor is connected with speed reducer, which joins the roller device through the coupling, and roller device is driven around its axis. When the material enters into the roller device, material on the screen surface flips and rolls due to the inclination and rotation of roller device. Qualified material will be discharged from the bottom of roller drum while unqualified material will be discharged from the rear of the discharge port.

 Rotary Screen

Characteristics of Rotary Screen

  1. No blocking of mesh
  2. Reliable operation, low noise
  3. Simple structure, easy maintenance
  4. Close-circuit screening device, easy to seal dust
  5. Low investment, high screening efficiency, long service life

Application Scope of Gravel Screen

The gravel screen is mainly used for classification of quarry stone with different sizes, separation of soil from stone, coarse coal and coal powder separation in coal industry, and bulk and powdery material separation in chemical industry.

Parameters Type

Model Yield(m³/h) Power
(kw)
Sieve hole(2mm) Sieve hole(30mm)
YTS1230 12 100 5.5
YTS1240 14 120 5.5
YTS1250 15 140 5.5
YTS1530 18 150 5.5
YTS1540 18 150 7.5
YTS1550 20 180 11
YTS1560 22 200 11
YTS2040 25 250 15
YTS2050 30 300 15
YTS2060 35 350 18.5
