Vibrating Screen

Vibrating Screen

Processing capacity: 8-800m³/h
Vibrating power: 800-970r/min
Max. feeding size: 400mm
Screen size: 4-100mm
Motor power: 5.5-22×2kw

Free download pdf (Product information) (1.30M) Get price list Handbook for dust control in mining(4.06M)

0086-0371-63313738/0086-18039114854

We will provide you with the best quality service.If you are interested in our products,
you can click the button and contact us.
market@hxjq.com Send Enquiry

Vibrating Screen Introduction

The vibrating screen is a kind of sieving equipment of international advanced level, developed by our company on the basis of carrying on the advantages of traditional screens and absorbing the outstanding technology from abroad. It is widely used for grading and screening materials in the following fields: minerals, quarry, building materials, water conservancy and hydro power, transportation, chemical industry, smelting and so on.

Vibrating screen is working in stone crushing plant

Vibrating screen machine, one common mineral ore screening machine, is mainly applied to separate the gravel and clay, large stone and small one as well as massive material and powder material.

Sand screening machine is chiefly used in the stone production line or gravel production line for separating the large stone and small one. In the artificial sand production process, it is able to be used for separating the qualified sand and unqualified one. According to the different size of sieve pore, the product granularity can be adjusted.

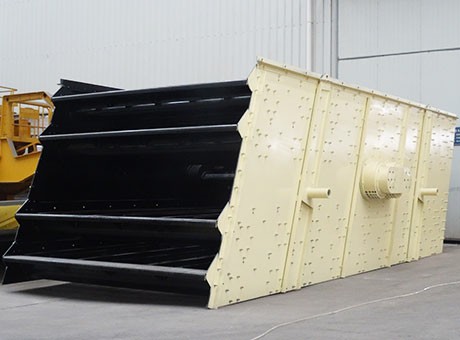

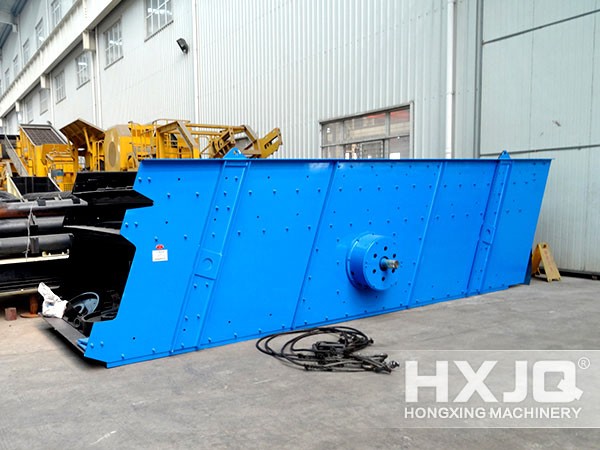

Vibrating Screen

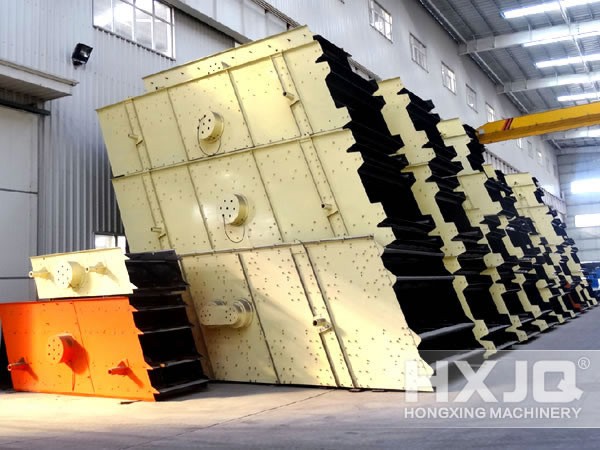

Workshop of Hongxing vibrating screen

Vibrating Screen Structure

The body of Vibrating Screen machine consists of base frame and supporting structure. The base frame is welded using heavy channels and angles and special care has been taken during design. Screen supporting structure and Screen are made from wear resistant special Coil Steels.

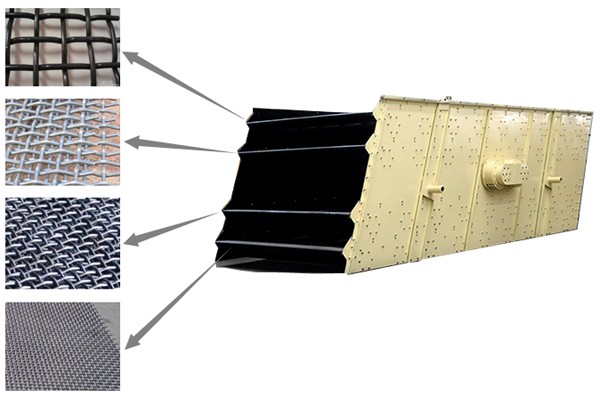

Vibrating Screen Structure

Four-layer vibrating screen is with four-layer mesh, and the mesh taper is finer and finer from top to bottom, so as to screen materials into various sizes.

Vibrating Screen Working Principle

Sand screening machine is single-axis circular-movement inertial vibrating screen, whose working depends on inertial motor and inertial strength produced by eccentric plate. Because of the vibration of screen box, the materials are threw out, so that materials of certain size go through the screen mesh, and the screening aim is realized.

Animation demo of vibrating screen

Since the magnetic exciter is installed on the gravity center of screen box, the two long elliptical axises form a shape like a Chinese character, and the upper of long elliptical axis at inlet end is in the same direction with the outlet, which favors the spread of materials which are at the screen box. However, the upper of long elliptical axis at outlet end is opposite to the direction of the outlet, which can reduce the movement speed of materials, and help the difficult-screened materials go through the screen mesh. What's more, the effective area of sand screening machine is increased because of the elliptical screen surface; as a result, the processing capacity is promoted.

Vibrating Screen Operation and Maintenance

1. Before starting, we should inspect every fasteners bolt of sand screening machine and examine whether it becomes less crowded. If it is, we should fasten it one time.
2. After the vibration screen machine has empty motion for 4-6 hours, the sieve body should be steady. No sway and unusual sound and driver bearing temperature≤7512.
3. After idle operation movement, we should examine every spots spiral of vibrating screen and fasten one time.
4. In normal work, it should have periodic inspection of every fasteners bolt tight situation.
5. Inspect vulnerability, the use and the maintenance frequently. Please refer to the instruction for use. (vibrating motor should be refueled one time after 3 months, driver be refueled one time every month, a minor repair half year, a overhaul one year.)

Parameters Type

Model Sieve
layer
Sieve
area
(m²)
Mesh
size
(mm)
Max.
feeding
size
(mm)
>Processing
 capacity
(m³/h)
Vibrating
Frequency
(r/min)
Double
amplitude
(mm)
Motor
power
(kw)
Sieve
obliquity
(°)
Sieve
specification
(mm)
>Dimensions
(L×W×H)
(mm)
2YK1225 2 6 4-50 400 8-60 800-970 8 6P   5.5 20 1200×2500 2930×1860×870
3YK1225 3 9 4-50 400 10-70 800-970 8 6P   5.5 20 1200×2500 3070×1860×1210
2YK1230 2 7.2 4-50 400 12-78 800-970 8 6P   7.5 20 1200×3000 3430×1860×870
3YK1230 3 10.8 4-50 400 13-80 800-970 8 6P   7.5 20 1200×3000 3570×1860×1210
2YK1237 2 8.88 4-50 400 15-86 800-970 8 6P   7.5 20 1200×3700 4050×1860×870
3YK1237 3 13.32 4-50 400 16-90 800-970 8 6P   7.5 20 1200×3700 4270×1860×1210
2YK1535 2 10.5 5-50 400 20-125 800-970 8 6P   11 20 1500×3500 4120×2210×1230
3YK1535 3 15.75 5-50 400 21-125 800-970 8 6P   11 20 1500×3500 4360×2210×1610
2YK1545 2 13.5 5-50 400 22-150 800-970 8 6P   11 20 1500×4500 5120×2210×1230
3YK1545 3 20.25 5-50 400 22-150 800-970 8 6P   15 20 1500×4500 5360×2210×1610
4YK1545 4 27 5-50 400 22-155 800-970 8 6P   15 20 1500×4500 5930×2210×2060
2YK1548 2 14.4 5-50 400 22.5-162 800-970 8 6P   11 20 1500×4800 5420×2210×1230
3YK1548 3 21.6 5-50 400 22.5-162 800-970 11 6P   15 20 1500×4800 5660×2210×1610
4YK1548 4 28.8 5-50 400 22.5-162 800-970 8 6P   18.5 20 1500×4800 6230×2210×2060
2YK1848 2 17.28 5-80 400 25-206 750 8 6P  18.5 20 1800×4800 5420×2550×1420
3YK1848 3 25.92 5-80 400 32-276 750 8 6P   18.5 20 1800×4800 5660×2550×1780
4YK1848 4 34.56 5-80 400 32-285 750 8 6P   22 20 1800×4800 6290×2550×2160
2YK1854 2 19.44 5-80 400 32-312 800-970 8 6P   22 20 1800×5400 5960×2550×1420
3YK1854 3 29.16 5-80 400 32-312 800-970 8 6P   22 20 1800×5400 6260×2550×1780
4YK1854 4 38.88 5-80 400 32-336 800-970 8 6P  22 20 1800×5400 6830×2550×2160
2YK2160 2 25.2 5-100 400 50-475 970 8 6P   30 20 2100×6000 6720×2840×1530
3YK2160 3 37.8 5-100 400 50-475 970 8 6P  30 20 2100×6000 7030×2840×1910
4YK2160 4 50.4 5-100 400 50-497 970 8 6P   37 20 2100×6000 7300×2840×2380
2YK2460 2 28.8 5-100 400 65-550 970 8 6P   30 20 2400×6000 7020×3140×1530
3YK2460 3 43.2 5-100 400 70-620 970 8 6P   37 20 2400×6000 7300×3140×1910
4YK2460 4 57.6 5-100 400 80-680 970 8 6P   45 20 2400×6000 7600×3140×2380
2YK2870 2 39.2 5-100 400 120-680 750 8 8P   22×2 20 2800×7000 7600×4320×1620
3YK2870 3 58.8 5-100 400 180-720 750 8 8P   22×2 20 2800×7000 7800×4320×2120
2YK3072 2 43.2 5-100 400 200-700 750 8 8P   22×2 20 3000×7200 7800×4520×1750
3YK3072 3 64.8 5-100 400 230-800 750 8 8P   22×2 20 3000×7200 8000×4520×2300
