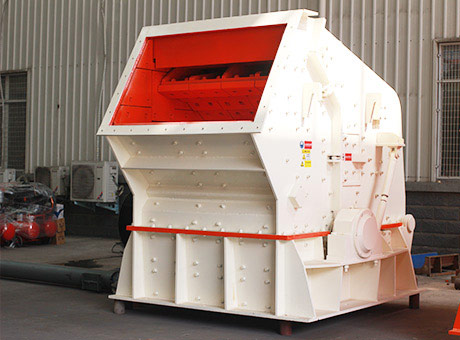

Impact Crusher

Impact Crusher

Processing capacity: 30-800t/h
Feed opening: 400×730-1260×2040mm
Feeding size: 300-700mm
Applied material: limestone, granite, coal, slag, clay.

Free download pdf

Fill in your email address and click on download.

Get Latest Price

You have to fill in the raw material and contact information, we will have professional engineers get in touch with you.

Handbook for dust control in mining

Fill in your email address and click on download.

We will provide you with the best quality service.If you are interested in our products,
you can click the button and contact us. Send Enquiry

An Overview of Impact Crusher

Impact crusher consists of a feed hopper, feeder, swirling crushing chamber, an impeller body, a main shaft assembly, a transmission device, and a motor, totally seven parts. It has the advantages of simple structure, low cost, stable operation, high efficiency and energy saving.

Due to materials' dramatically lining in impeller and eddy broken cavity, the cost of wear parts and repair workload are reduced, which effectively solves the "iron pollution" problem of the broken glass and other raw materials in the process of crushing and "steel blocked" issue in the process of breaking steel slag. The clever internal air circulation eliminates the dust dispersion.

Application of Impact Crusher

Impact crushers are suitable for materials whose compressive strength is under 360Mpa and side length is less than 500mm. They are preferred to crush granite, limestone, ravel gravel, etc.

We design and supply primary and secondary impact crushing plants. The impact crusher manufactured by our company is a highly popular plant for secondary crushing applications. It is an ideal crusher that handles concrete full of rebar, asphalt and other debris to produce highly salable materials. The impact crusher is designed with cubic shape and features convenient operation and maintenance, high efficiency and energy saving. It can achieve selective crushing. Particularly in Particularly in processing the hard, extra hard and abrasive materials such as silicon carbide, corundum, sintered bauxite and magnetite, Hongxing impact crusher has more advantages than other types of crushing machines. For construction sand, gravel which is used in roads is especially appropriate.

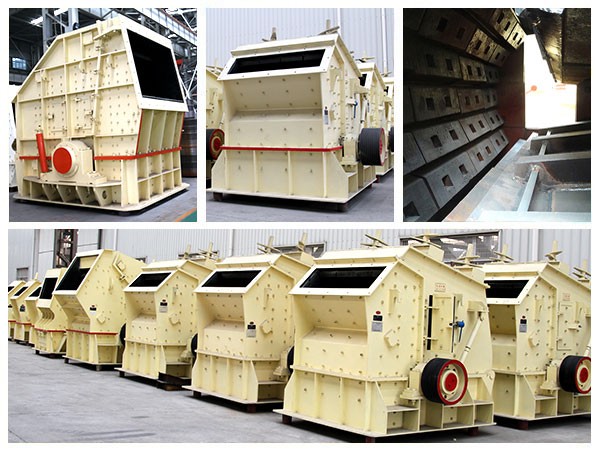

Impact Crusher

Cutting Edge of Impact Crusher

Impact crusher is popular all over the world in recent 20 years. Impact crusher has been proved that this series of crushers can effectively increase productivity and final product quality. And they can also greatly reduce the investment costs and operation costs. Incomparable excellent performance is shown in the secondary crushing, tertiary crushing and material recovery.
1. Unique simple structure, keyless connection, easy maintenance
2. High-chromium plating hammer and special impact liner plate.
3. Capable of highly efficient hard rock crushing while saving energy.
4. The final product of impact crusher is in the shape of a cube; the discharge grain size is adjustable to simplify the crushing circuit.
5. Reliable performance.

Parameters type

Model Specification
The Maximum
Feeding Size
PF-1007 Φ1000×700 400×730 300 30-70 37-45 12 2330×1660×2300
PF-1010 Φ1000×1050 400×1080 350 50-90 45-55 15 2370×1700×2390
PF-1210 Φ1250×1050 400×1080 350 70-130 110 17.7 2680×2160×2800
PF-1214 Φ1250×1400 400×1430 350 100-180 132 22.4 2650×2460×2800
PF-1315 Φ1320×1500 860×1520 500 130-250 220 27 3180×2720×2620
PF-1520 Φ1500×2000 830×2040 700 300-550 315-400 50.6 3959×3564×3330
PF-1820 Φ1800×2000 1260×2040 800 600-800 630-710 83.21 4400×3866×4009
