Jaw Crusher

Jaw Crusher

    Jaw crushers can be used together with mine-selecting equipment and gravel processing equipment as well as used independently. The Jaw crusher is used as Primary crushers and Secondary crushers for crushing all kinds of minerals and rocks with compressive strength less than 320 MPa.
Technical Features

Description of Jaw Crusher

Jaw crushers can be used together with mine-selecting equipment and gravel processing equipment as well as used independently. The Jaw crusher is used as Primarycrushers and Secondary crushers for crushing all kinds of minerals and rocks with compressive strength less than 320 MPa.

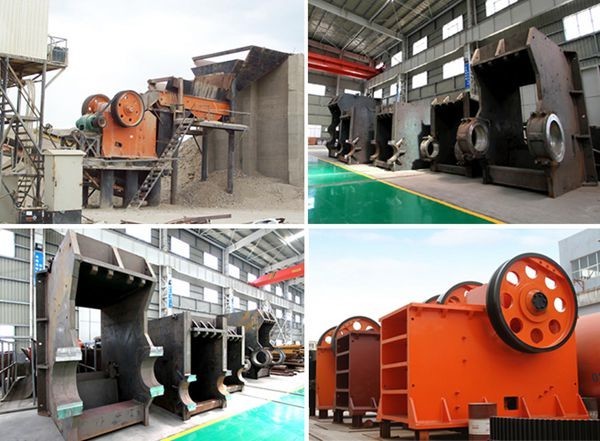

jaw crusher


There are two types of Jaw crushers: Coarse jaw crusher and Fine jaw crusher.
Hongxing Machinery also manufactures Mobile jaw crusher, Single toggle jaw crusher and other Jaw breakers.

Working Principle of Jaw Crusher

The strip and strip pulley are driven by a motor, and the moving jaw moves up and down via eccentric shaft. The angle between fixed jaw and moving jaw becomes smaller when the moving jaw runs down, and then the materials are crushed into pieces. The gap will become bigger when the moving jaw runs up. The moving jaw board leaves the fixed jaw board under the action of pole and spring, and then the end products come out from the crushing cavity. And also, Jaw crusher is always used as the Primary jaw crusher.

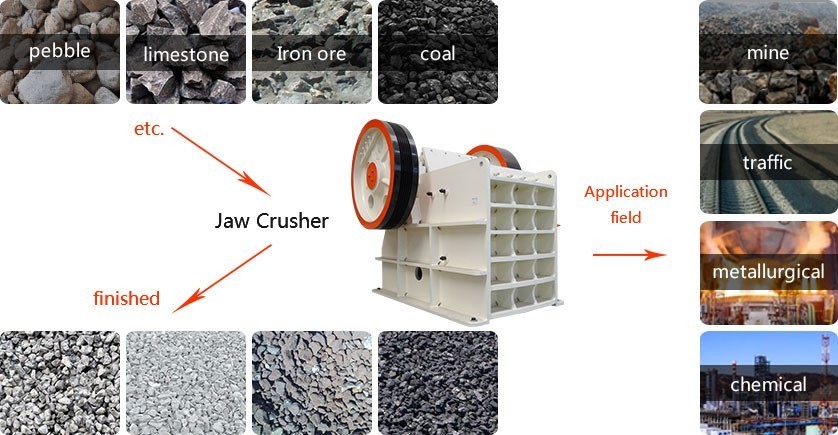

jaw crusher

Jaw Crushers Performance and Features

1. Crushing cavity is deep and without dead area, which improves feeding capacity and output;
2. High reduction ratio and uniform final product size;
3. Spacing piece type discharge-hole adjustment device is reliable and convenient;
4. Reliable and safe lubrication system, convenient replacement of parts and small work load of maintenance;
5. Simple structure, reliable operation and low cost;
6. Energy-saving, single machine can save energy by 15% to 30%; the system can save energy by over 30% to 60%;
7. Large adjustment range of discharge hole can meet the demands of different users;
8. Low noise and little dust;
9. Convenient maintenance and use, stable performance, low operation cost, high reduction ratio;
10. The outlet employs pad-style adjustment devices, convenient and reliable, and increases the flexibility of the equipment.
Technical Parameters
Model
Feed opening
(mm)
Max.feeding size
(mm)
Adjusting range of discharge opening
(mm)
Processing capacity
(t/h)
Rotation speed of eccentric shaft
(r/min)
Motor power
(kw)
Total weight
(t)
Dimensions
(L×W×H)
(mm)
PE-150×250 150×250 125 10-40 1-3 250 5.5 0.8 720×660×850
PE-200×300 200×300 180 15-50 2-6 260 7.5 1.2 910×750×990
PE-200×350 200×350 180 18-70 3-10 260 11 1.5 1000×870×990
PE-250×400 250×400 210 20-60 5-20 300 15 2.8 1300×1090×1270
PE-400×600 400×600 340 40-100 16-60 275 30 7 1730×1730×1630
PE-500×750 500×750 425 50-100 40-110 275 55 12 1980×2080×1870
PE-600×750 600×750 500 150-200 80-240 275 55 15.8 2070×2000×1920
PE-600×900 600×900 500 65-160 50-180 250 55 17 2190×2206×2300
PE-750×1060 750×1060 630 80-140 110-320 250 110 29 2660×2430×2800
PE-800×1060 800×1060 640 130-190 130-330 250 110 29.8 2710×2430×2800
PE-830×1060 830×1060 650 160-220 150-336 250 110 30.7 2740×2430×2800
PE-870×1060 870×1060 660 200-260 190-336 250 110 31.5 2810×2430×2800
PE-900×1060 900×1060 685 230-290 230-390 250 110 33 2870×2420×2940
PE-900×1200 900×1200 750 95-165 220-450 200 110 52 3380×2870×3330
PE-1000×1200 1000×1200 850 195-265 315-500 200 110 55 3480×2876×3330
PE-1200×1500 1200×1500 1020 150-350 400-800 180 160-220 100.9 4200×3300×3500
PE-1500×1800 1500×1800 1200 220-350 500-1000 180 280-355 122 5160×3660×4248
PE-1600×2100 1600×2100 1500 300-400 1300-2200 160 350-380 150.6 6210×4013×4716
PEX-150×750 150×750 120 18-48 8-25 320 15 3.8 1200×1530×1060
PEX-250×750 250×750 210 25-60 13-35 330 30 5.5 1380×1750×1540
PEX-250×1000 250×1000 210 25-60 16-52 330 30 7 1560×1950×1390
PEX-250×1200 250×1200 210 25-60 20-61 330 37 9.7 2140×1660×1500
PEX-300×1300 300×1300 250 20-90 16-105 300 55 15.6 2720×1950×1600
