Mobile Crusher

Mobile Crusher

Processing ability: 90–500 t/h
Feeding size: 480–750 mm
Outlet size: 65–200 mm
Applied material: pebble, limestone, granite, basalt, diabase, andesite, etc

Free download pdf (Product information) (1.20M)

Fill in your email address and click on download.

Get price list Crushing Plant Design and Layout Considerations($30 Last day free download)(2.05M)

Fill in your email address and click on download.

We will provide you with the best quality service.If you are interested in our products,
you can click the button and contact us.
market@hxjq.com Send Enquiry

Mobile Crusher Description

Mobile crushing station, which is promoted by Henan Hongxing Mining Machinery Co., Ltd expands greatly of the coarse crushing field. mobile crusher plant is an ideal portable crusher for primary crushing in large quarries.

Hongxing portable jaw crusher plants are built around proven jaw crusher concepts. They combine a high reduction ratio and increased capacity with any fed materials: from extra hard rocks to recycle materials. Hongxing portable crusher offers superior strength, crushing performance and reliability even in the most demanding applications.

The portable crusher plant has the advantages of easy transportation, low transportation cost, flexible configuration, convenient maintenance, etc. Mobile crusher plant can be operated as independent units, or as two-stage crushing plant with primary and secondary crushing, or as three stage crushing plant with primary, secondary, and tertiary crushing according to different clients' requirements.

Mobile Crusher

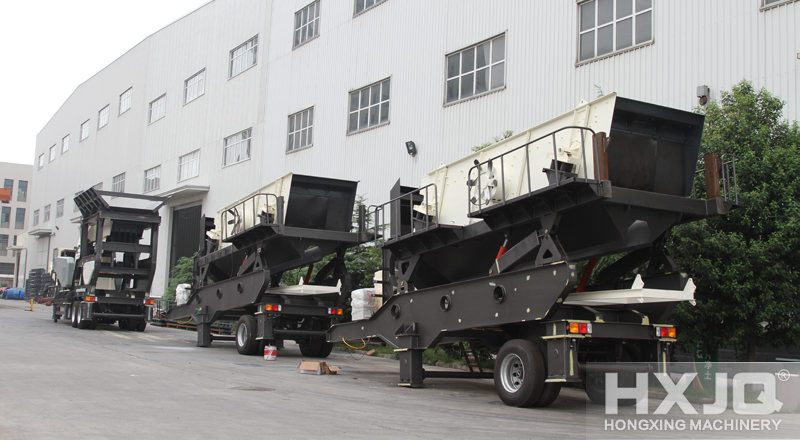

Mobile Crushers in line for Great Capacity

Composition and Working Principle of Mobile Crusher

The mobile crushing plant is composed of primary crushing and screening station and secondary one, belt conveyor, etc. Every crushing station is an independent working unit, which can respectively assume their different responsibilities, and the belt conveyer is responsible for material transmitting and piling up between each crushing station.

Composition and Working Principle of Mobile Crusher

Fabulous Characteristics of China Mobile Crushing Station

1. Flexibility

2. Low material transportation fee

3. Direct and effective operation

4.  High suitability and flexible configuration

5. Reliable performance and easily repair

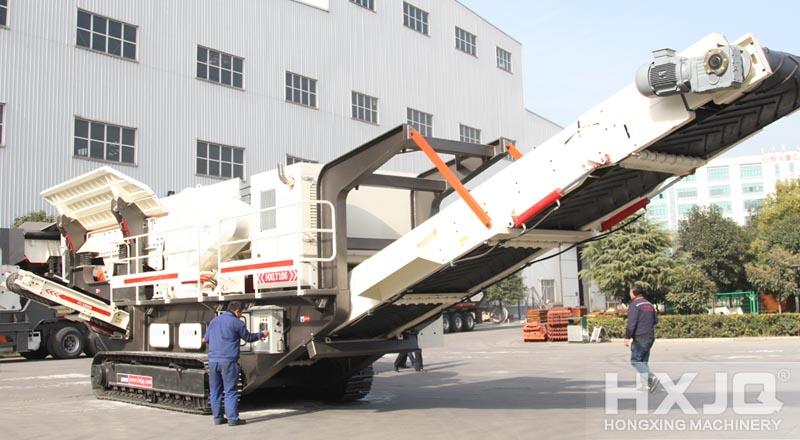

mobile crusher

Parameters Type

MOBLIE IMPACT CRUSHER TECHNICAL PARAMETERS

Model HX938F1210 HX938FW1214 HX1149F1315 HX1349HD1110 HX1349HD1315
Transportation Length(mm) 12000 12000 13900 15450 15450
Transportation Width(mm) 2550 2550 2900 2950 2950
Transportation Height(mm) 3900 3900 4450 4500 4500
Maximum Length(mm) 12500 12500 13900 15450 15450
Maximum Width(mm) 3250 3260 3250 3250 3250
Maximum Height(mm) 5100 5200 5200 5200 5200
Weight(t) 39 44 54 62 62
Crusher Model PF-1210 PF-1214 PF-1315 HD1110 HD1315
The Maximum Feeding Size(mm) 350 350 500 400 700
Production Capacity(t/h) 70-130 100-180 130-250 112 280
Vibrating Feeder ZSW950×3800 ZSW950×3800 ZSW110×4900 ZSW130×4900 ZSW130×4900
Main Belt Conveyor B800×8.5M B800×8.5M B1000×9.5M B800×11M B1200×11M
Side-opening Belt conveyor(Optional) B500×3.2M B500×3.2M B650×4M B650×4M B650×4M
Genset(Optional) (kw) 320 320 400 320 440
Iron Separator (Optional)(kw) RCYD(C)-8 RCYD(C)-8 RCYD(C)-10 RCYD(C)-8 RCYD(C)-12

MOBLIE JAW CRUSHER TECHNICAL PARAMETERS

Model HX938HD80 HX1149HD98 HX1349HD110 HX1349HD125
Transportation Length(mm) 12600 13500 14500 15200
Transportation Width(mm) 2600 2700 2800 2900
Transportation Height(mm) 3870 4200 4450 4500
Maximum Length(mm) 12500 14000 16100 14700
Maximum Width(mm) 4100 4500 5100 5100
Maximum Height(mm) 4100 4900 5000 5300
Weight(t) 39 57 55 65
Tire Configuration Dual-axial Dual-axial Dual-axial Dual-axial
Jaw Crusher HD80 HD98 HD110 HD125
Maximum Feeding Size(mm) 500 550 660 800
Discharge Opening Size(mm) 50-150 75-175 100-200 125-225
Capacity(t/h) 85-275 110-350 215-510 280-650
Vibrating Model ZSW380×95 ZSW420×110 ZSW490×130 ZSW490×130
Main Belt Conveyor B800×8.5M B1000×9.5M B1000×11M B1200×11M
Side-opening Belt conveyor(Optional) B500×3M B650×3.5M B650×4M B650×4M
Genset(Optional) (kw) 200 250 270 400
Iron Separator (Optional) RCYD(C)-8 RCYD(C)-10 RCYD(C)-10 RCYD(C)-12
