PRODUCTS CENTER > Sand Maker

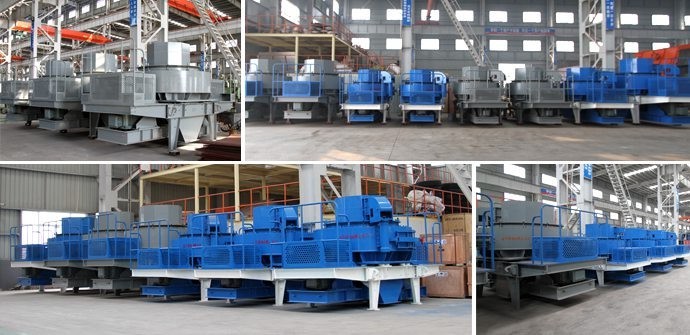

Sand Maker

Sand Maker

    Stone less than 50mm enters sand making machine through conveyor belt. Stone is crushed by hitting other stones. Material falls down to impeller cavity. Under great centrifugal force, it hits material that coming downwards. After hitting each other, they force a vortex between impeller and shell, and hit each other several times. smaller
Technical Features

Common Sense of Sand Maker

The sand making machine produced by our company can provide you with all-around technical supports. The whole line is consists of vibrating feeder, jaw crusher, straight centrifugal crusher, vibrating screen and belt conveyor. According to specific requirements, we can combine different models together to meet various needs. HX series impact crusher is a high-efficient rock crushing machine at international leading level; the machine introduces the crushing theory and technology from Barmac Company of America and combines the actual situation of sand making.

Sand Maker


It is widely used for crushing of hard and brittle materials, such as rock, grinding material, refractory material, cement clinker, quartzite, iron ore and concrete aggregate; and it is especially suitable for the sand and sandstone making for construction and road paving.

Working Principle of Sand Making Machine

Stone less than 50mm enters sand making machine through conveyor belt. Stone is crushed by hitting other stones. Material falls down to impeller cavity. Under great centrifugal force, it hits material that coming downwards. After hitting each other, they force a vortex between impellor and shell, and hit each other several times. Finally, smaller stone comes out and goes to vibrating screen. Satisfactory material is transported to sand washing machine. Overlarge material will go back to sand maker to be crushed again. Output sizes can be made according to customers' requirement. If input size is larger than the designed size, other crushing machines will be necessary.

Sand Maker

Characteristics of Artificial Sand Maker

1. VSI sand maker machine is a new type rock crushing machine developed in the 1990s and is used for substituting roller and ball mill.
2. The structure is simple and the operation is stable;
3. Low energy consumption, high output and big reduction ratio;
4. Small bulk, convenient operation, installation and maintenance;
5. The product is in the cubic shape with small iron pollution;
6. During the process, the stone rock can form a protective bottom layer which makes the equipment more durable;
7. Some easy wear parts adopt hard and wear-resistant materials and have small bulk and light weight, so that it can be changed easily.

Technical Parameters

Technical parameters of HX Series impact crusher

Specification Max.feeding size
(mm)
Power
(kw)
Rotation speed of impeller
(r/min)
Capacity
(t/h)
Dimensions(L×W×H)
(mm)
Total weight
(kg)
FTM-06 35 37-55 2000-3000 12-30 2500×1620×2600 5600
FTM-07 45 55-75 1500-2500 25-55 2700×1760×2800 7600
FTM-09 50 110-150 1200-2000 55-100 3900×2000×3070 12600
FTM-10 60 150-180 1000-1700 100-160 4600×2350×3450 17300
FTM-12 60 264-320 850-1450 160-300 4500×2400×3700 22500
FTM-13 60 320-400 800-1193 200-360 5200×2700×3800 27600



Model FTMVSI-7611 FTMVSI-8518 FTMVSI-9526 FTMVSI-1140
Capacity
(t/h)
Feedboth at center and at sides 120-180 200-260 300-380 450-520
Feed at center 60-90 100-130 150-190 225-260
Max.Feeding size(mm) Sofe material 35 40 45 50
Hard material 30 35 40 45
Rotation speed
(r/min)
1700-1890 1520-1690 1362-1510 1180-1310
Doubole Motor power
(kw)
110 180 264 400
Overall dimension (L×W×H)
(mm)
3700×2150×2100 4140×2280×2425 4560×2447×2778

5000×2700×3300

Total weight (t) 11.8 14.5 17.8 25.6
Power supply 380V 50HZ
Vibrating sensor Detect range 0.1-20mm/s continous and adjustable
Lubrication and hydraulic station Double motor power 2×0.31kw
Safety assuance Double oil pumps assure enough oilsupply: automantic switch off with no oil stream or hydraulic temperature with cool water in summer with motorin winter.
Overall dimension (L×W×H)
(mm)
820×520×1270
Power of oil tank heeater 2KW
